11kv Casting Resin Standoff Insulators for Fix Copper Busbar in Switch Cabinet

起源の場所 Wenzhou
ブランド名 QIUPU
証明 IEC
モデル番号 65X125mm
最小注文数量 200pcs
パッケージの詳細 カートン
受渡し時間 7日
支払条件 T/T、ウェスタンユニオン
供給の能力 100000pcs/月

試供品およびクーポンのための私に連絡しなさい。

whatsapp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

心配があれば、私達は24時間のオンライン・ヘルプを提供する。

x
商品の詳細
材料 キャスト樹脂 赤茶色
沿面距離 280mm dia 65mm
Higth 125mm レート電圧 11kv
メッセージ
製品の説明

11kv Casting Resin Standoff Insulators for Fix Copper Busbar in Switch Cabinet





1. We are specialty on epoxy resin medium voltage and high voltage components, such as 10KV, 24 KV and 40.5KV Circuit Breaker , Load breaker switch , Disconnecting Switch , Epoxy resin switchgear bushing , contactor box , insulators and transformer . 630A, 1250 A ,2500A , 3150A and 4000A contact box , club contact , fix contact, arm contact and jaw contact . 630A and 1250A VS1 circuit breaker . 630A and 1250A ZN85-40.5 circuit breaker . 12KV and 24KV earth switch. KYN28A-12 and KYN61 high voltage switchgear components .



2. The load switch adopts the pressure gas internal blowing structure, the arc extinguishing ability is strong, and does not affect the interphase and ground insulation, both the dynamic and static contacts have the arc contact, greatly increased the number of breakdowns.





3. The fuse and the load switch room form the transformer protection circuit. The high voltage flow limiting fuse is installed in the insulated shell of epoxy pouring. After the fuse is broken, the firing pin is ejected and the load switch is divided.



Item Technical data
Rated voltage (KV) 3.6   12 24 40.5
Rated frequency(Hz) 50
Insulator(capacity) insulating Frequency withstand voltage 5 min (KV) 25   42   100
Frequency withstand voltage 1 min (V) 2000
Lighting impulse withstand voltage (KV) 40   75   185
Local discharge (pc) ≤10
Dispute bend (N) ≥10000
Length 140mm

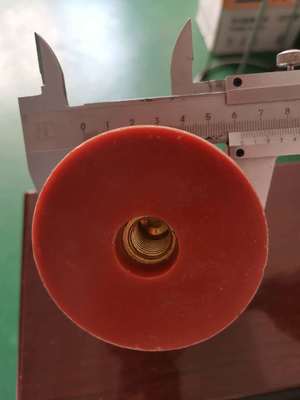

        11kv Casting Resin Standoff Insulators for Fix Copper Busbar in Switch Cabinet 0

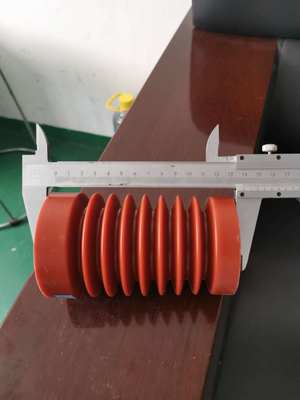

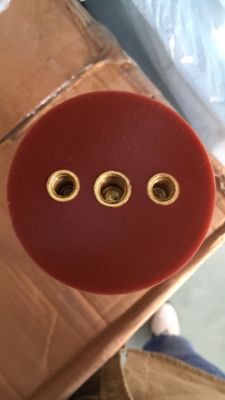

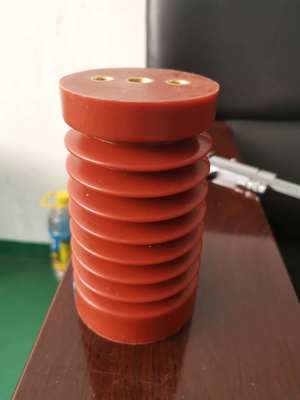

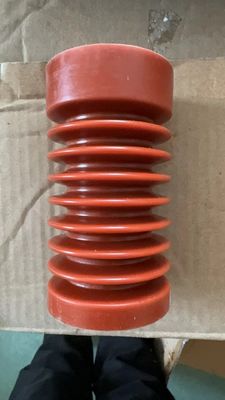

      11kv Casting Resin Standoff Insulators for Fix Copper Busbar in Switch Cabinet 1 11kv Casting Resin Standoff Insulators for Fix Copper Busbar in Switch Cabinet 211kv Casting Resin Standoff Insulators for Fix Copper Busbar in Switch Cabinet 3
