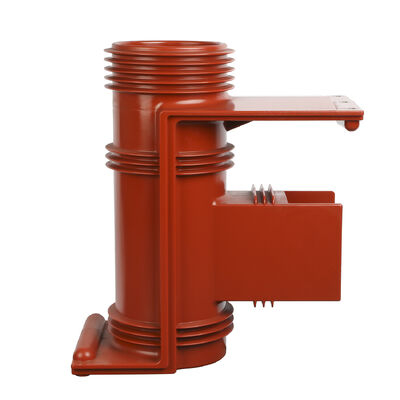

630A-4000A 36kv Epoxy Resin V. T Spout Bushing with Medium Voltage Switchgear
商品の詳細
| 色 | 赤 | 材料 | キャスティング樹脂 |
|---|---|---|---|
| 定格電圧 | 36kV | 周波数電圧 | 100kV |
| 沿面距離 | 810mm | 曲げ強度 | 10kN |
| 現在 | 630A-4000A | ハイ | 660mm |
製品の説明
630A-4000A 36kv Epoxy Resin V. T Spout Bushing with Medium Voltage Switchgear
Description
1. We are specialty on epoxy resin medium voltage and high voltage components, such as 10KV, 24 KV and 40.5KV Circuit Breaker , Load breaker switch , Disconnecting Switch , Epoxy resin switchgear bushing , contactor box , insulators and transformer . 630A, 1250 A ,2500A , 3150A and 4000A contact box , club contact , fix contact, arm contact and jaw contact . 630A and 1250A VS1 circuit breaker . 630A and 1250A ZN85-40.5 circuit breaker . 12KV and 24KV earth switch. KYN28A-12 and KYN61 high voltage switchgear components .
2. The APG process includes three processes: pre-mixing, automatic pressure gel, and solidification after molding.
3. Compared with the permanent magnetic type, which is mainly the control and operation mechanism, the fixed seal type is the projectile type, and the permanent magnetic type is the controller) The whole cabinet is called the armor type moving medium metal closure switch equipment, which is divided into three layers, the upper layer is the bus and the instrument panel(separate), the middle layer is the circuit breaker room and the lower layer is the cable room. Because the circuit breaker has been in the middle, so called the armor type to move the type of metal closure switch equipment, short for the cabinet. (2) The central cabinet is a type of switchgear used by end users. It is fully functional and large in size, while the ring cabinet is a type of switchgear used to connect two power sources or parts of a ring network. The main function is to divide the two sections into two parts. There are many kinds of lockers, which can be divided into the switchboard, the measuring cabinet, the transformer cabinet, the change cabinet used, and so on. The switch in the cabinet may be equipped with an automatic protection device.
| Item | Name | Rated voltage (KV) | Rated frequency(Hz) | Frequency withstand voltage 5 min (KV) | Local discharge (pc) | Creep distance (mm) | Dispute bend (kN) | Lighting impulse withstand voltage (KV) |
| 1 | Insulators(140*320) | 40.5 | 50 | 98 | ≤10 | ＞810 | ≥10 | 185 |
| 2 | ||||||||
| 3 | Contactor box (1250A) | 12 | 50 | 45 | ≤10 | ＞240 | ≥8 | 80 |
| 4 | Contactor box (1600A) | 12 | 50 | 45 | ≤10 | ＞240 | ≥8 | 80 |
