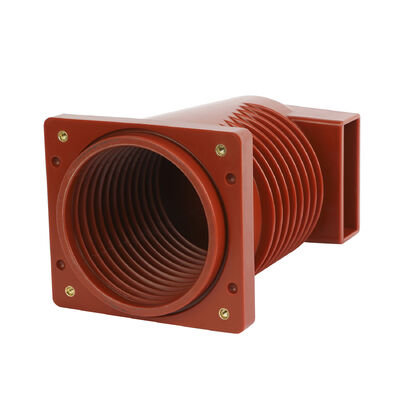

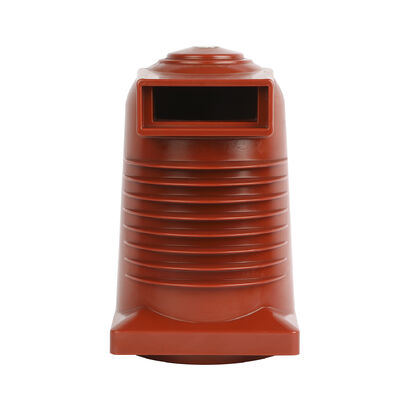

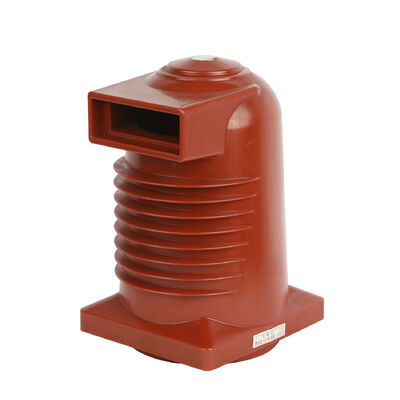

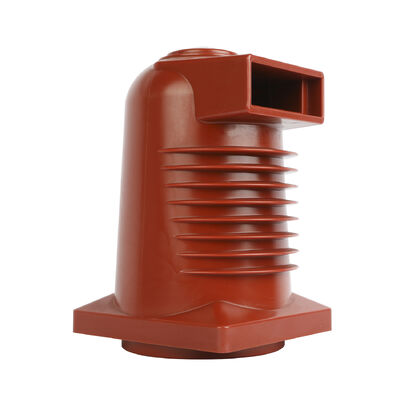

24kV Epoxy Resin V.T Spout Bushing Insulator in Medium-Voltage Switch Cabinet
商品の詳細
| 材料 | エポキシ樹脂 | 色 | レッド/ブラウン |
|---|---|---|---|
| ハイ | 315mm | クレページ距離 | 410mm |
| 定格電圧 | 24KV | 周波数電圧 | 68kV |
| 曲げ強度 | 10KN | 定格電流 | 1250A-1600A |
| ハイライト | 24kV epoxy resin bushing insulator,medium-voltage switch cabinet insulator,V.T spout bushing with warranty |
||
製品の説明
24kV Epoxy Resin V.T Spout Bushing Insulator in Medium-Voltage Switch Cabinet
Main feature
The contact box is the pressure gel molding structure of epoxy resin APG process, which is used for various kinds of handcart type switchgear, acting as insulation isolation and connection transition.The contact box is formalised by ecoxy with APG technologies, it is used for integration and conversion of Various switch trucks.
Depending on the location of the installation, the interior type and shape of the house may be selected, with conductors for the purpose and without conductors for the mother
Linear wall casing. Aluminum conductors are usually used in house electrical distribution equipment.
| Item | Technical data | ||||||||||||
| Rated voltage (KV) | 3.6 | 7.2 | 12 | 24 | 40.5 | ||||||||
| Rated frequency(Hz) | 50 | ||||||||||||
| Insulator(capacity) | insulating | Frequency withstand voltage 5 min (KV) | 25 | 32 | 42 | 68 | 100 | ||||||
| Frequency withstand voltage 1 min (V) | 2000 | ||||||||||||
| Lighting impulse withstand voltage (KV) | 40 | 60 | 75 | 125 | 185 | ||||||||
| Rated Current | 630A | ||||||||||||
| Dispute bend (N) | ≥1000 | ||||||||||||
Advantage:
We are specialty on epoxy resin medium voltage and high voltage components, such as 10KV, 24 KV and 40.5KV Circuit Breaker , Load breaker switch , Disconnecting Switch , Epoxy resin switchgear bushing , contactor box , insulators and transformer . 630A, 1250 A ,2500A , 3150A and 4000A contact box , club contact , fix contact, arm contact and jaw contact . 630A and 1250A VS1 circuit breaker . 630A and 1250A ZN85-40.5 circuit breaker . 12KV and 24KV earth switch. KYN28A-12 and KYN61 high voltage switchgear components .
